Central Loose Tube Under Water Cable

Application:
This cable exhibits excellent tensile strength and side press retardancy, having excellent mechanical and environmental performance. Featured by its thin diameter and light weight, it is best suited for underwater condition, junction communication system and long haul communication system.
Description: Construction:

Central loose tube cable contains one tube with 2 - 24 fibers, which is filled with water blocking gel. A water swelling tape is helically wrapped around the cable core. Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength. The cable is jacketed with PE for water protection purpose. For direct burial, steel wire armour and corrugated steel tape armour are applied with an optional PE inner jacket. An optional Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. An optional ripcord can be put under the jacket to facilitate jacket removal.

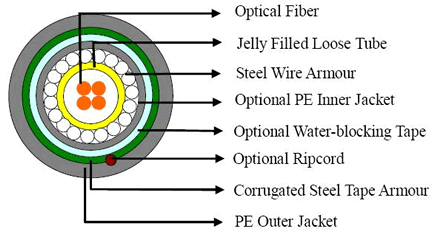

CENTRAL LOOSE TUBE UNDER WATER CABLE

Physical Properties:

Fiber Count

Nominal Weight (kg/km)

Nominal Weight
(lb/kft)

Nominal Outer Diameter
(mm)

Nominal Outer Diameter
(in)

Maximum Pulling/Tensile Load

Installation
(N/lb)

In Service
(N/lb)

2-12

352.0

236.24

14.0

0.553

8000/1800

2650/595



Mechanical Properties:

Minimum Bending Radius:
Under installation:     20×OD
During operation:     10×OD for unarmoured cables;
20×OD for armoured cables.
Temperature Range:
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉)
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉)

Maximum Compressive Load: 3000N
Repeated Impact:      4.4 N.m (J)
Twist (Torsion):        180×10 times, 125×OD
Cyclic Flexing:         25 cycles for armoured cables.;
100cycles for unarmoured cables.
Crush Resistance: 263N/cm(150lb/in)

Fiber Compliance:

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

Safety Compliance:

General Purpose Grade
Flammability Test: OFN (UL1581)
Riser Grade
Flammability Test: OFNR/FT4 (UL1666)
Plenum Grade
Flammability Test: OFNP/FT6 (UL 910)
FRPVC Grade
Flammability Test: IEC60332-1
LSZH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2

LSFROH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A

FR Grade
Fire Resistance Test: IEC 60331 / BS 6387 CWZ

Standard Compliance:
Telcordia GR-20                                               RUS 7 CFR 1755.900 (REA PE-90)                                   ICEA S 87-640

Features:

  • Loose tube jelly filled for superior fiber protection
  • Colored coded fibers and binders for quick and easy identification during installation.
  • High tensile strength design
  • Superior mechanical and environmental performance
  • Rugged and lightweight design
  • Durable construction to withstand high water pressure
  • Sufficient waterproof to withstand water penetration
